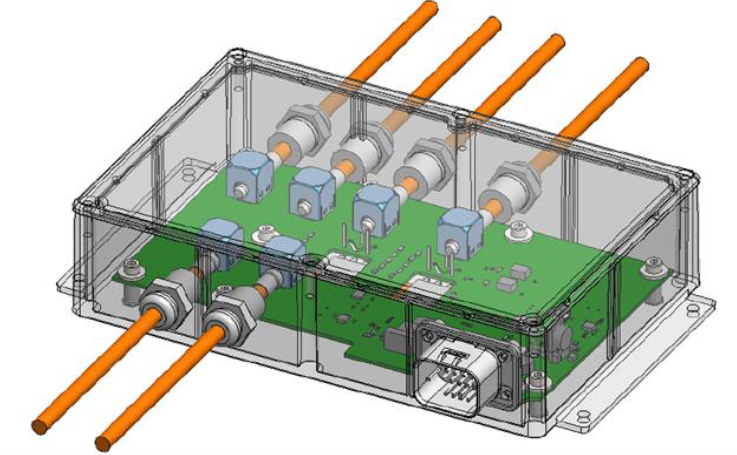

PDU15 Solid State High Voltage Switching Unit
Key Features
- CAN control interface
- 2x HV solid state switch circuits (15A, 700V)
- HV switch fault detection
- Automatic power delivery duty cycle calculating for voltage compensation
- IP67 enclosure
- 1x switch to ground input to CAN
- 1x 24V output driven from CAN
- 1x 24V external supply contactor driver
- Conductively cooled no air or water cooling required
Hypermotive’s PDU15 connects high voltage (HV) energy sources including
supercapacitors, batteries and fuel cells to light application loads which require frequent switching while under load. With intelligent embedded control, the unit provides a wide range of features including over heat prevention, fault detection, supply contactor scheduling and intelligent power delivery. Housed in a sealed metal enclosure to IP67, the unit is suitable for use in harsh environments including under vehicle.
Custom Configuration
Hypermotive’s experienced engineeringcteam can adapt this product product’s hardwarecand/or software to your specific vehicle
and application requirements. Pleaseccontact us to discuss feature configurationcand packaging options.
Typical Applications
- Electric vehicle heating
- Hydrogen fuel cell
- Li-Ion battery
- Truck / bus
- Passenger vehicle
